Zone Interface Module

Home | Zone Interface Module

Zone Interface Module

Model No.: ZIM-C-A-01


FIRE ALARM SYSTEMS
GAS RELEASE SYSTEMS
DELUGE VALVE SYSTEMS
WATER LEAK DETECTION SYSTEMS
LINEAR HEAT SENSING SYSTEMS
ANNUNCIATION SYSTEMS
FLAMEPROOF SYSTEMS
PUBLIC ADDRESS INTEGRATED SYSTEM
FIREMAN TALKBACK INTEGRATED SYSTEM
ACCESSORIES & MODULES
Special Features
Downloads
Special Features

Supply:

  • Voltage: 24v DC =/- volts. (110 / 240v Optional)
  • Standby Current with EOL: 10 mA.
  • Alarm Current: 80 mA. Max
  • Fault Current: Open Ckt. 25 mA.
  • Short Ckt. 120mA.

Detectors:

  • 40 conventional Detectors Max.
  • MCP unlimited.
  • EOL Resistor 4700 ohms.
  • Alarm Resistance. 470 ohms.

Interface to Monitor Module:

  • Normal: 47k EOL built in.
  • Fault: Open Circuit.
  • Fire Alarm: 1000 ohms.

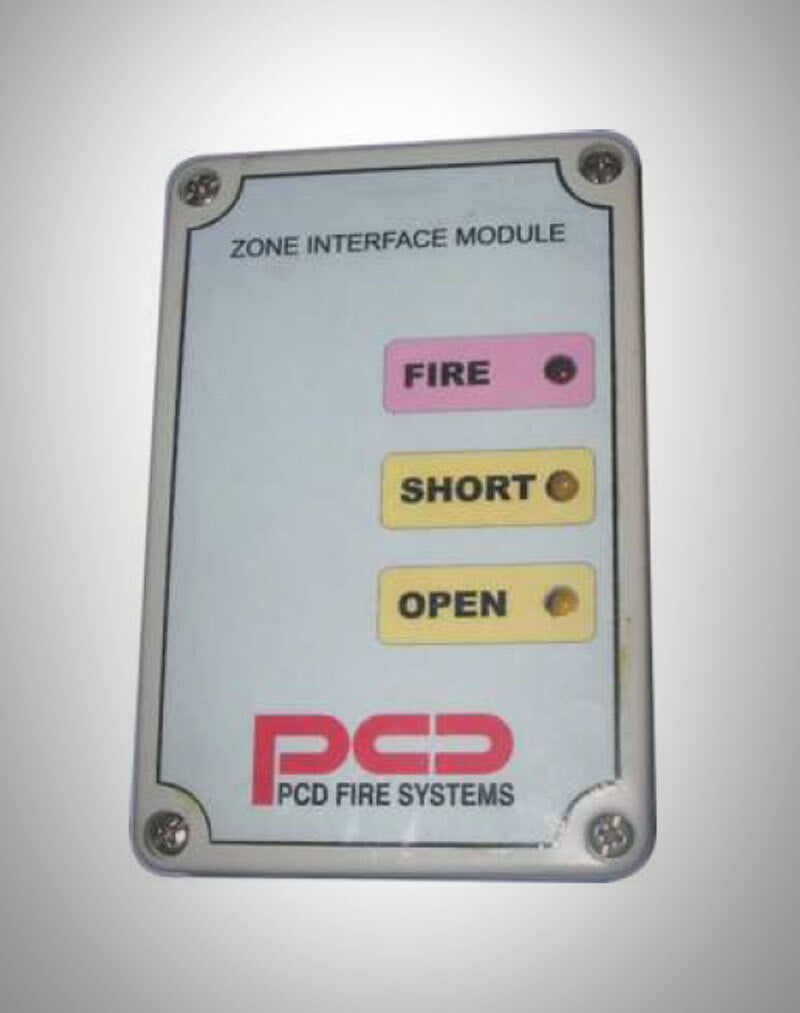

LED Indications:

  • 5mm Amber 2 Nos. Detector Circuit
  • Open / Short circuit fault indication.
  • 5mm Red 1 No for Fire Alarm.
  • Isolation. 1000v min between Detector and Monitor Module Terminals.

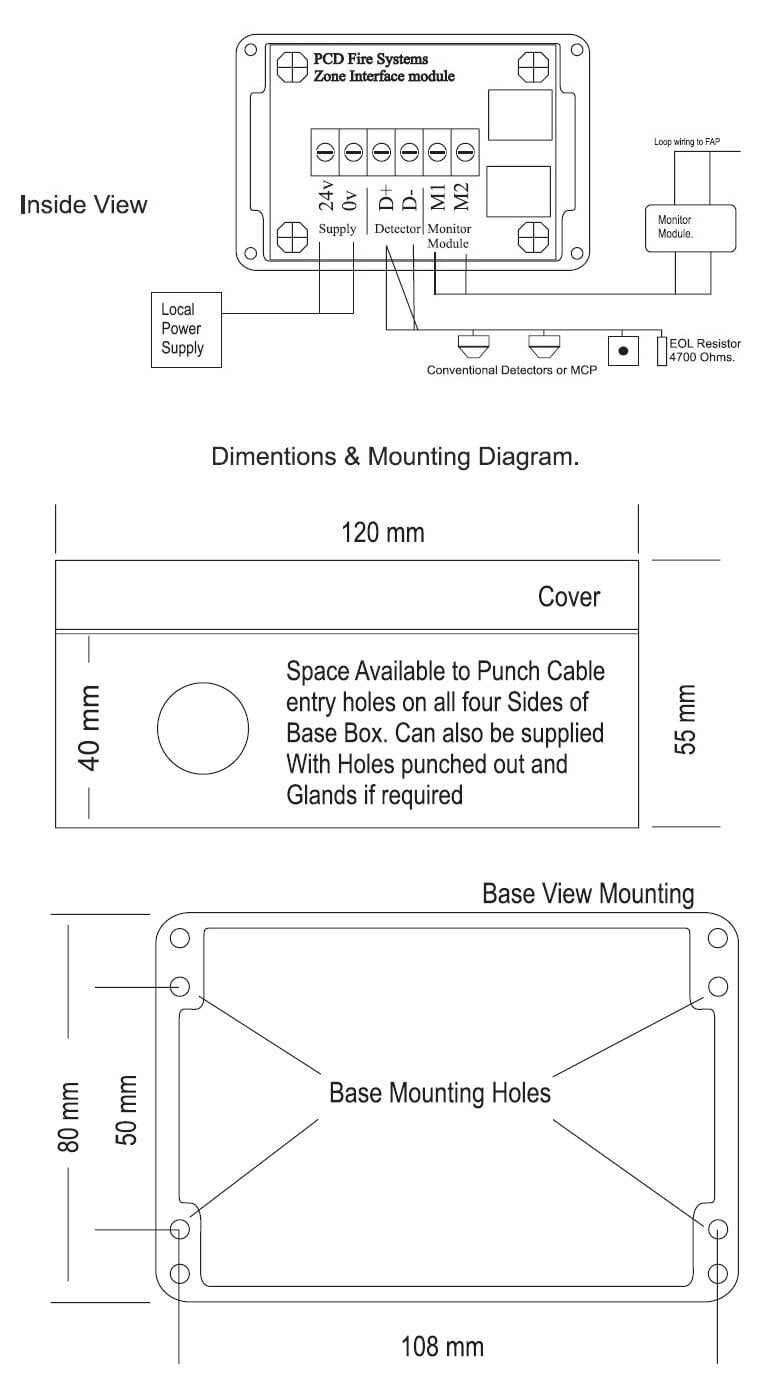

Dimension:
  • Width 120 mm, Height 80 mm, Depth 55 mm.
  • Housing Material: ABS.
  • Protection: IP 67.
