WLDP-PCZ 08WL
A conventional fire panel is manufactured to the same high quality of all PCD products. It is available fully configured with common Hooter.
The special features of this product are below:
- High reliability SMPS type power supply.
- Microprocessor based design with fire alarm panels
- Separate LED for open and short indication.
- Alarm LED per Zone
- Isolate/Test Function with LED per Zone.
- Hooter outputs monitored for open and short fault.
- Double sided PTH PCB for long life and highest reliability.

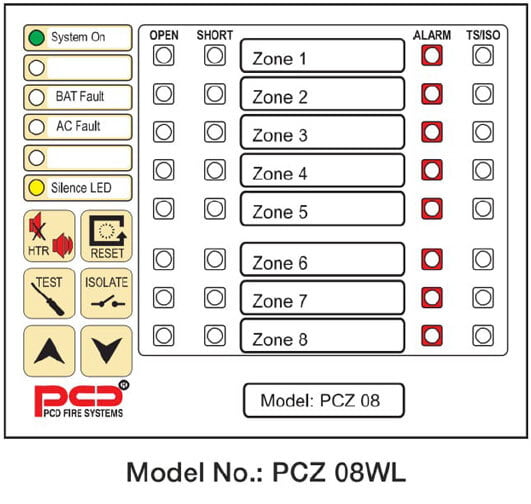

- Polycarbonate display fascia with Dome keys on Fascia.

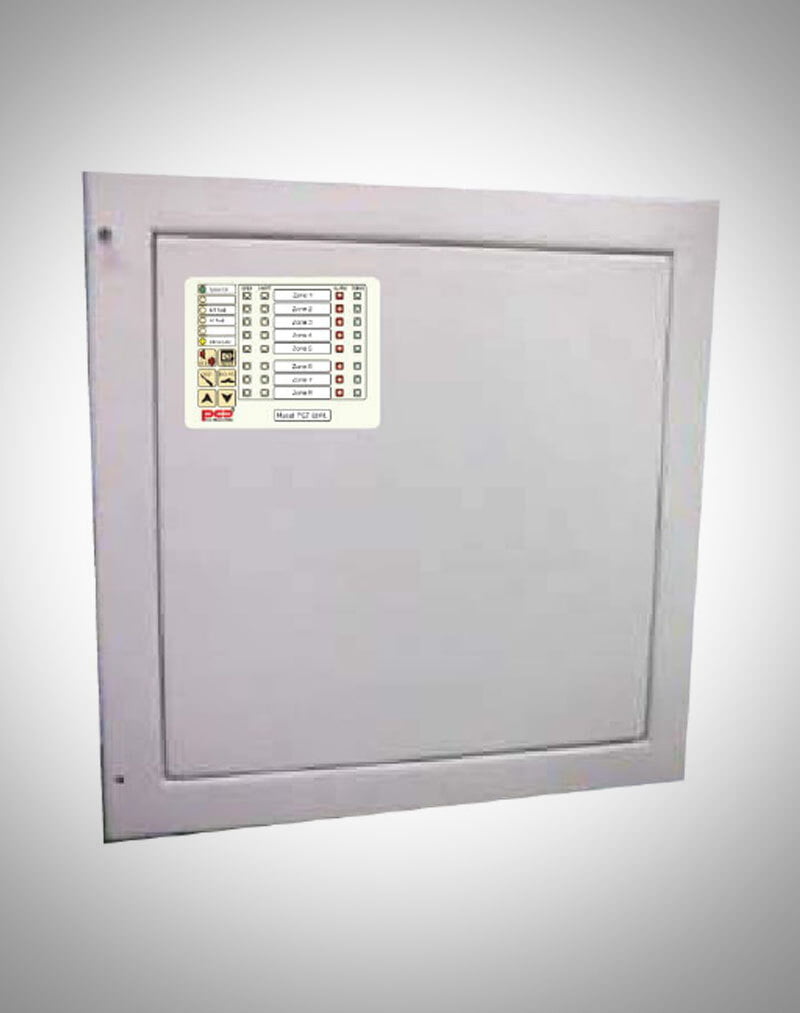

- Cabinet with locked glass door and gasket.
- Com Fault & Com Fire relay isolation contact available.
Panel Size
Special Features
Downloads
Panel Size
- 400MM X 400MM X 120MM
Special Features
| Zone | : | 1 to 8 |
| Detectors | : | 30 per zone |
| MCP | : | Unlimited |
| Hooter | : | Com Hooter 0.5A max. |
| Com fire contact | : | Isolated CO contact 0.5A@ 30v DC. |
| Main Power Supply | : | 240v AC, 110v AC optional |
| Standby Supply | : | 12v DC x 2 sealed MFLA batteries |
| Charger | : | Built in Float Boost |
| Fascia | : | Polycarbonate scratch resistant fascia with dome type touch sensitive push buttons |
| Indications | : | As per IS 2189. |
| Zone Labels | : | Customizable. |
| Cabinate | : | MS 1.2 mm sheet steel construction. |
| Cable Entry | : | Bottom. |
| Colour | : | Siemens Gray. |
| Battery | : | Space for batteries provided with in. |
| Additional Feature | : | Zone wise ISO contact and zone wise Hooter outputs |
