Repeater Panel
Model : CD 32-32z RPT / AL04-Rep
Introduction:
The Addressable Repeater is a Microprocessor based Repeater to be Used with Model CD 32 Repeater. This Panel Consists of the following Components.
Special Features
Downloads
Special Features
Model No.: CD 32-32z RPT:
Feature:
Location message and LED's as programmed in the main panel will display alarm indication on the LED display.
Silence key is Provided to Silence the Repeater Audio alarm.
Specification:
Panel Supply: 24V DC
Repeater: 4 wire shield, RS 485 and Power.
Repeater Model No.:
- CD 32-8z RPT / CD 32-16z RPT
- CD 32-32z RPT / CD 32-48z RPT
Panel Size:
400mmx400mmx120mm

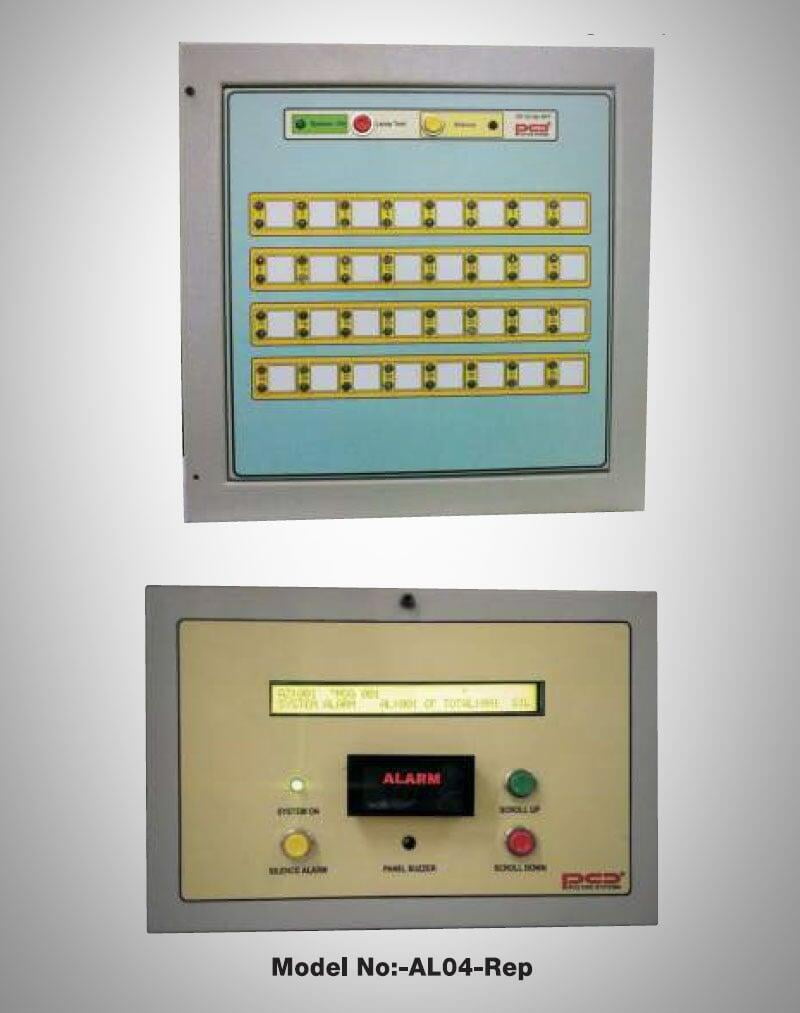

Model No.: AL04-Rep
Function:
Scroll up key work only the next alarm message on LCD. Scroll Down key work only the previous alarm message on LCD. Silence Audio alarm repeater panels for Alarm. Alarm will restart if new alarm is detected Silence LED will become on in LCD displays Silence Message.
LED Panel Specification:
- Panel Supply: 24V DC
- Repeater: 4 wire shield, RS 485 and Power.
LED Operation:
Check the key operation. As given in the LCD & key operation section.
Put the communications commands & check the reply on theRS485/RS232 communication with the PC & observation the proper message on LCD.
Normal Operation:
In case of event related to master controller. Operation action, master executed function or fault.
Panel Size:
400M MX200M MX120MM
