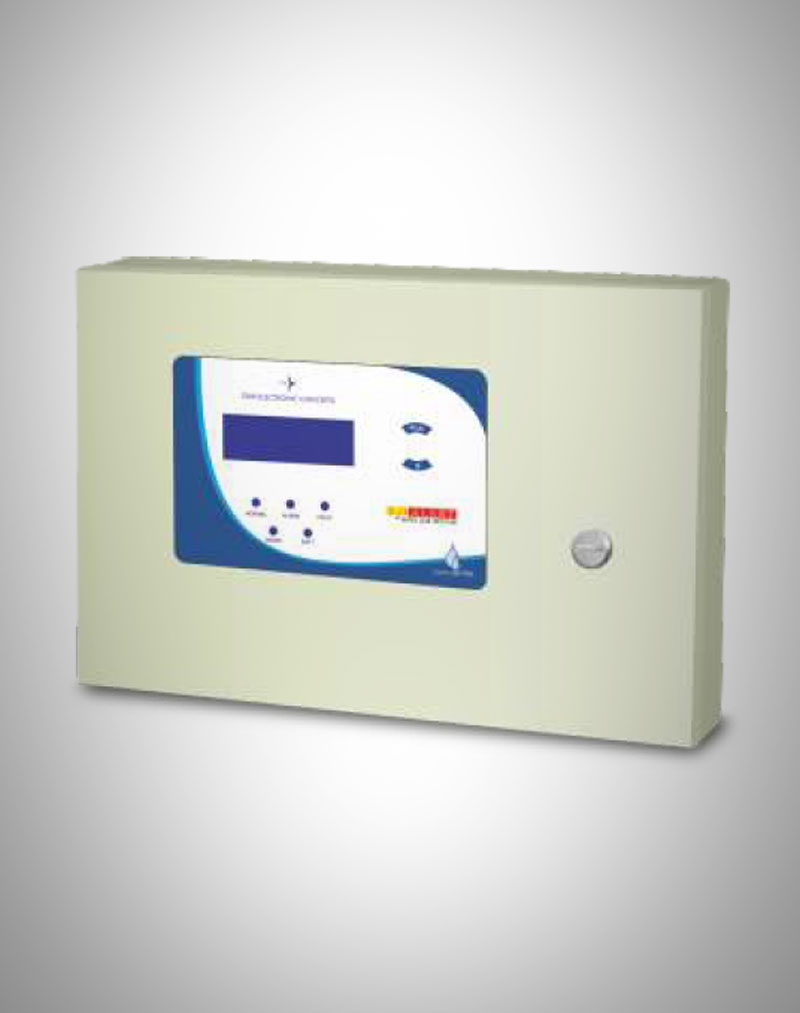

WLDP-05D
Features
Optional Features
Special Features
Downloads
Features
- Zones available 2,4,6,8
- Operates on 230 VAC Supply
- 20 X 4 LCD Alphanumeric display
- Relay Out for Alarm, Fault, Hooter.
- Tampering protection
- LED's for zone status, mains and battery status.
- Eco & Budget Friendly (single battery).
- Panel Dimensions 350mm X 250mm X 100mm
Optional Features
- Modbus over RS-485
- Relay Board (Zone wise)
- Battery backup
- Event Log
- Alphanumeric Key Pad
Special Features
| Supply | : | Supply Voltage: 230VAC + 10 % 50Hz. Power consumption: 8 Watts (standby). |
| Battery | : | Inbuilt trickle charging. Lead acid battery 12V - 7Ah Charging Voltage:15.9 VDC. |
| Zones Input | : | AC signal through sensor cable: 10Vpp @ 40 KHz. Sensor cable length: 5 mtrs to 100mtrs per zone. |
| Notification | : | Operating Nominal Voltage: 12 VDC |
| Appliance Circuits | : | Operating Current: 0.25A (Max) |
| Relay Rating | : | Alarm Contact (C, NO): 125VAC@ 1A / 30VDC@2A Fault Contact (C, NO): 125VAC@ 1A / 30VDC@2A NAC Contact (C, NO): 125VAC@ 1A / 30VDC@2A |
| Dimension | : | 350 x 250 x 100 mm |

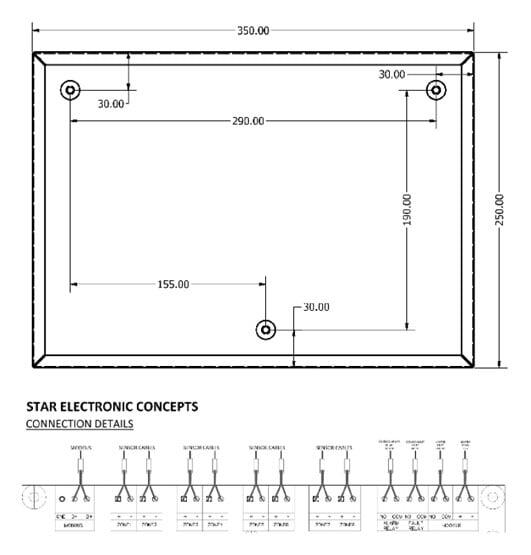

| Mounting Details | : | All dimensions in mm. |
