For Gas Release Stations:
Features:
- MS Powder Coated
- Rugged, Durable
- Double action
- Push Button to Latched Alarm
- Push Button to MCP. (Panel Reset)
- High Quality Electrical Components.
- Simple and Easy to Maintain.
100mm x 100mm x 80mm
MC-MS-R: For Fire Alarm Break Glass
MR-MS-R: For Manual Gas Release
MR-MS-RD: Manual Gas release Double Action.

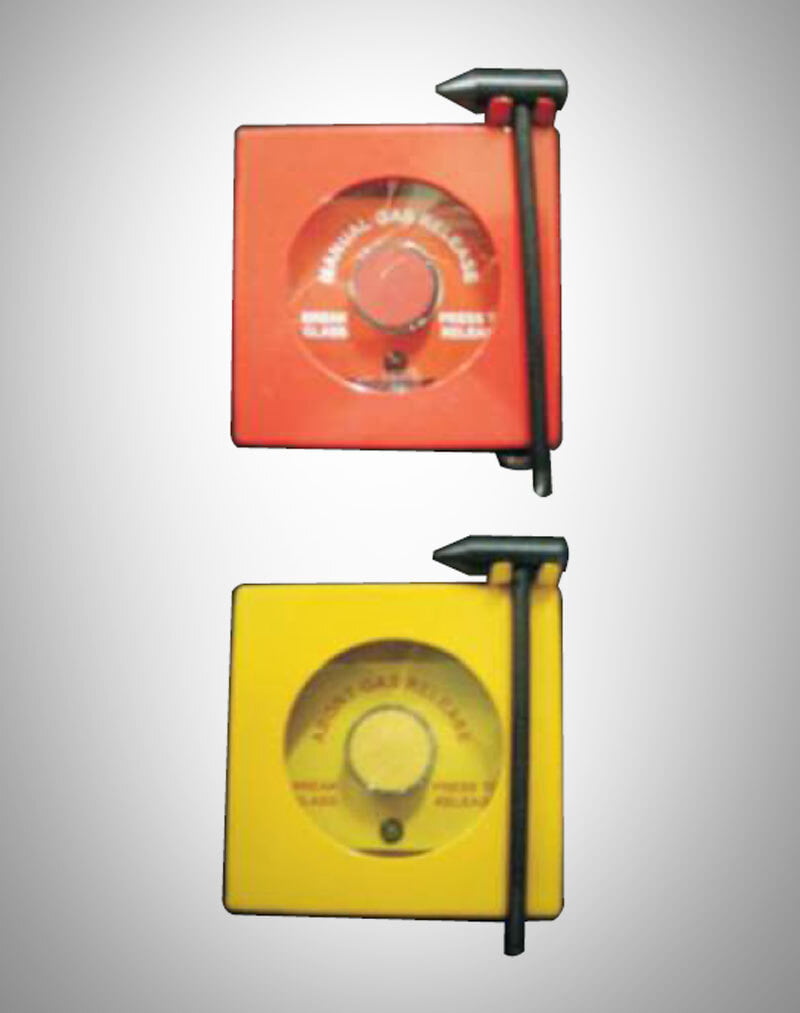

RED for Manual Call Point & Manual release. Yellow for Abort.
Characteristics of Contacts:
Mechanical Characteristics:
- Contact Operation: NC/NO Slow Break, self wiping
- Operating Force: Changing State: 6.5 N
- Mechanical Durability Pushbuttons: Spring Return, Operations 2 million
Electrical Characteristics:
- Terminal Capacity Cabling: 2x1.5sq.mm or 1x2.5sq.mm
- Contact Material: Silver Alloy(Ag/Ni) Standard Single element
- Short Circuit Protection: Conforming to IEC 947-5-, 10A HRC fuse
Rated make Break Capacity:
AC15 Utilization Category: IEC 947-5-1- 415V AC, 4A
A600 Utilization Category: Conforming to CSA 22.2 & UL 508
DC13 Utilization Category: IEC 947-5-1- 110V DC, 0.5A
Q600 Utilization Category: Conforming to CSA 22.2 & UL 508
Dielectric Strength Pushbuttons: 2500V for 1 minute
Rated Insulation Resistance: Conforming to IEC 947-5-1 V U i=500V
Rated Impulse withstand voltage 6 kV
Rated thermal current A Ith=10
Models:
SG-MS-YD: Manual Stop Gas release Double Action.
Approvals:
CSA NRTL C A600 Q600 & CE
