Model No.: FTH-01/02
- Duplex Communications.
- Available in 2 versions
- Break Glass with Handset behind door closed door.
- Or wall socket with status indication.
- Simple operation just lift handset to talk
- Cable saving 4 pair cat 5/6 network cable.
- Control Panel operation on 24v DC
- Micro processor based design with addressable model
- Conference calls for up to 5 stations.
- Sleek counter sunk talk back stations.

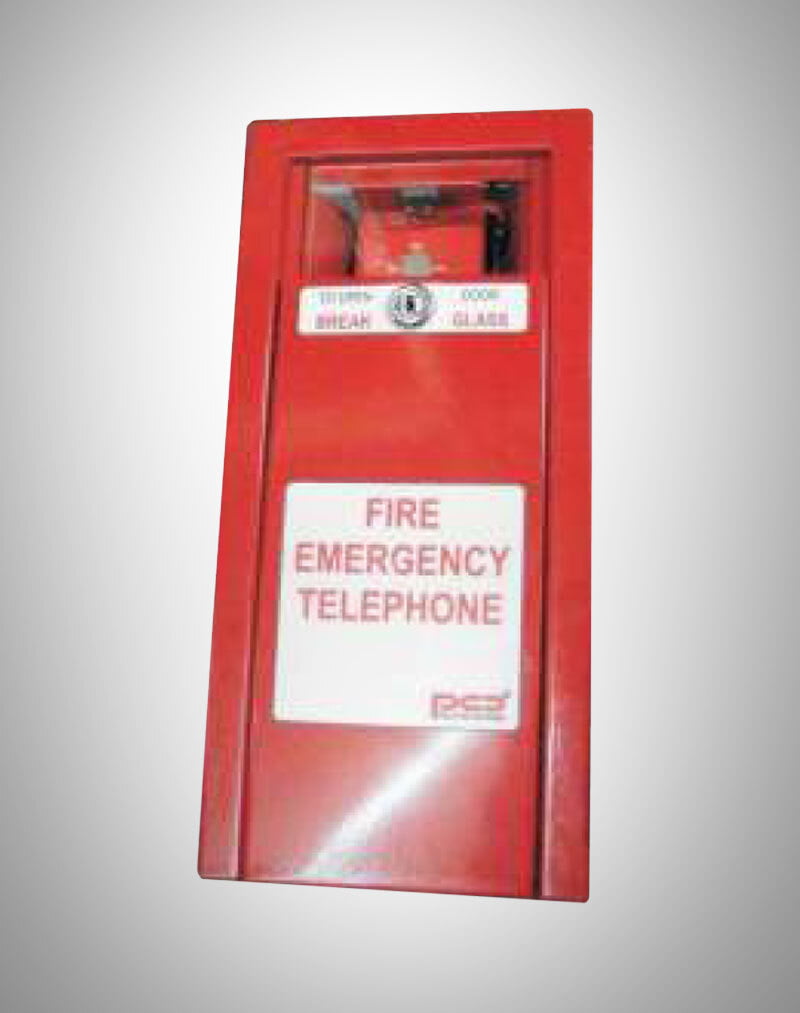

Telephone handset Module with Break Glass MS Cabinet.
160 x 360 x 90 mm. Flush Mounted.
- 24v DC UPS from Panel.
- 2 wire data communications.
- Pulsing communications LED (Green).
- Yellow call detected ACK LED.
- Red LED to indicate call registered
- Addressable Module with 5 bit Address switch.
- Microprocessor with embedded firewire SMT technology.

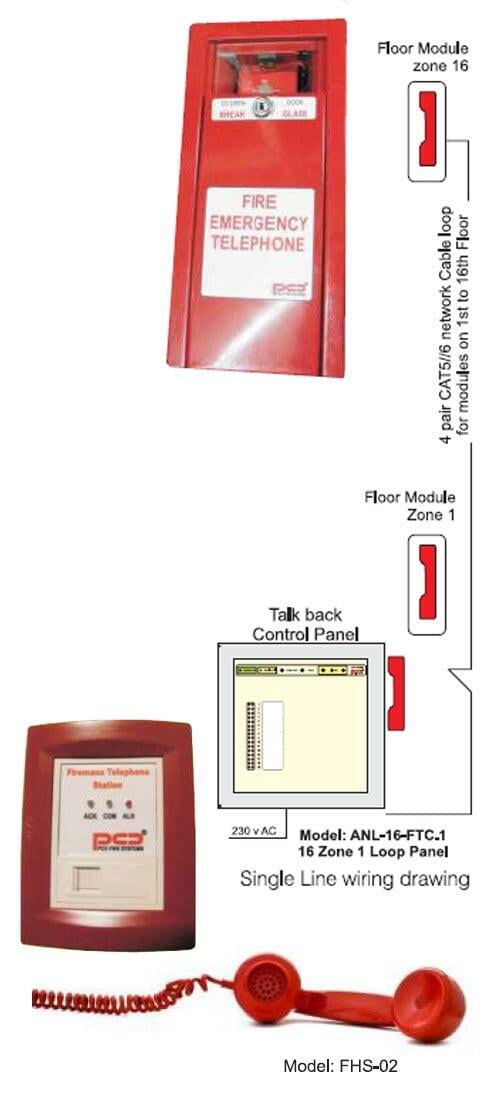

- Loop Length 300m Cat5 4 Pair cable.
- Size: 90 x 118 x 5 mm
Hand set only with RJ-11 Telephone Plug.
Complete with Duplex Voice Amplifier ear piece and microphone also available with push to talk Push Switch - Option for use with FTH-02.
Loop length Maximum 300 mtr Cat 6 4 pair cable.
or Maximum 800 mtr around cable length 1.5sq.mm. per Loop 16 modules Max. Multiple loop panels available for large installations.
