Gas Release Systems:

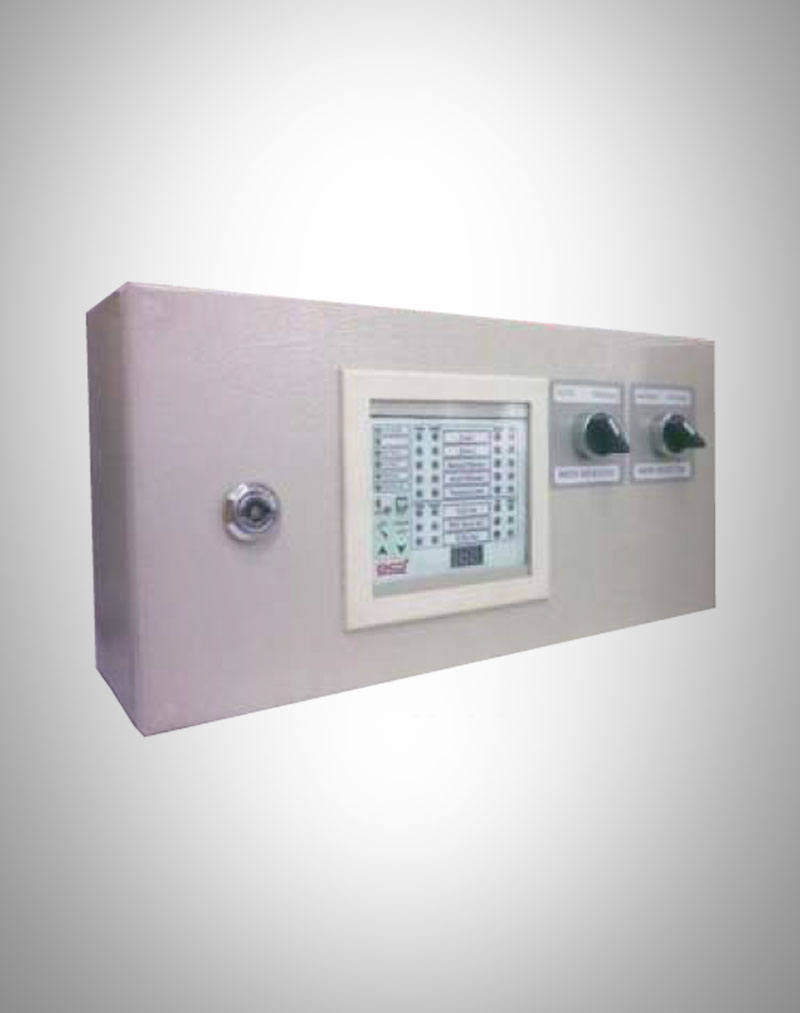

Model: C5i3oGR
Introduction:
C5i3oGR Panel in Zone-1, Zone -2 Customer will connected et. & MCP Connected for Server Room. An Addressable System can be used for gas release by connecting a combination of addressable Monitor and control modules along with a timer and Local Power Supply.
- 2zones with cross zoning Panel. the special Features of this product are listed below
- Microprocessor based SMPS regulator cum charger.
- Microprocessor based design with zone Alarm verification.

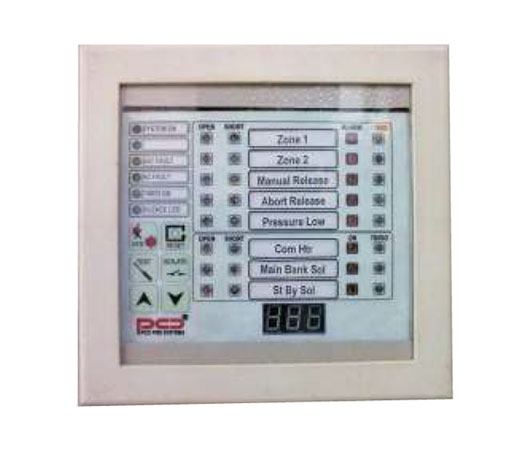

- In gas release panel two zone input signal e.g. (Manual rel, Abort rel, Pressures low) Cable Monitoring.
- Separate LED for open and short Indication.
- Alarm LED per zone.
- Isolate test ONLED Input Signal.
- Double side PTHPCB for long life and highest reliability.
- Polycarbonate Key & Indication Fascia.
- MS Single and construction cabinet with full Door Gasket.
- Main Bank, Com Fault Relay & Sol on relay Isolated Contact available.
Special Features
Input
Output
Downloads
Special Features
Main Supply:
230vAC. (110 v Optional)
Standby Supply:
12vDcx2 Maintenance Free Batt
Input
Alarm:
zone 1 and zone 2CRzone timer on
Manual Release:
NO, Contact. NC470E for release Immediately after operation.
Abort Switch:
No, Contact NC470E to Abort Release.
Pressure Low:
NO, will indicate When NC470E.
Output
Fir Relay:
ComFire Relay Operated.
Fault Relay:
ComFault Relay Operated.
Solenoid Output:
Continuously ON main bank optional st by bank 24vDc Max. 1 AMP.
Audio Alarm:
Buzzer will sound for Zone 1, Zone 2 and Manual Rel.
COM HTR:
24v Dc 500mA.
Optional Extra:
Isolated contact for com Fault and Solenoid ON.
Timer:
Controlled with 1 to 255 sec. delay...
