Manual Call Point Combo + Sounder:
(Addressable & wire Module - MCP + Sounder)

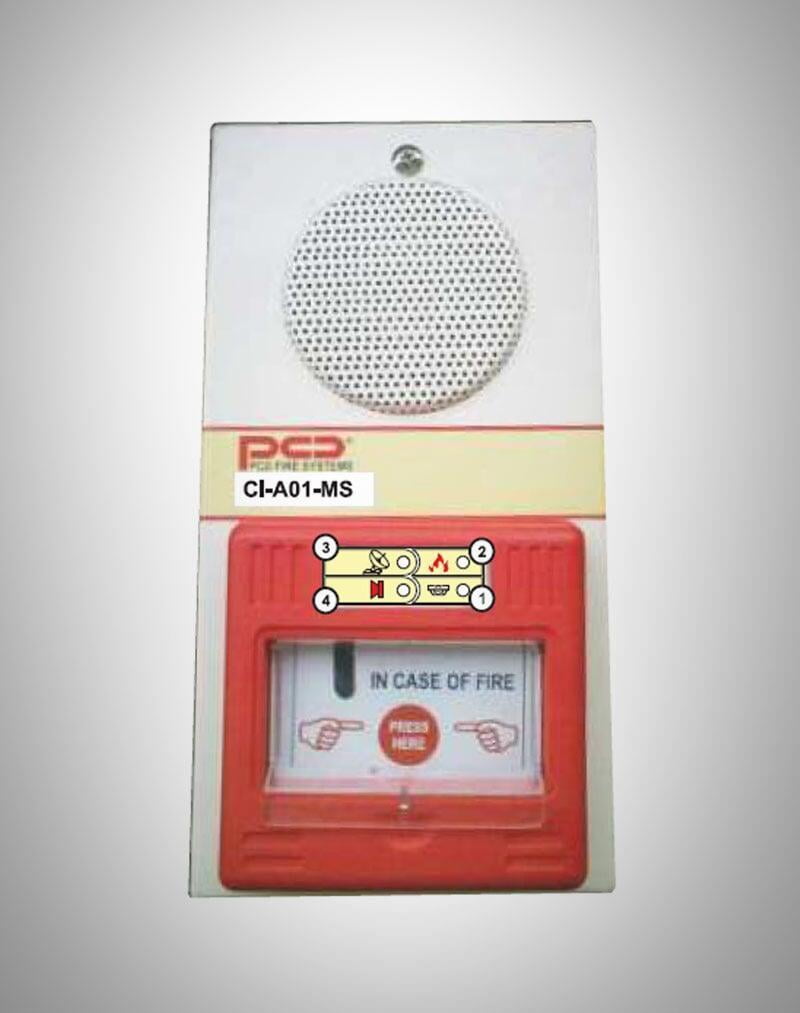

Model No.: CI-A01-MS

This is a single Module designed to be flush mounted It has a fire. Open and short Indication. The Zone module has own micro controller based detection circuits and has verification for zone alarm built in. This is a conventional fire Alarm Module with a built in Manual Call point and Sounder. The Special Features of this Product are listed below.
ADDRESSABLE SYSTEM
GAS RELEASE SYSTEMS


DELUGE VALVE SYSTEMS
WATER LEAK DETECTION SYSTEMS
LINEAR HEAT SENSING SYSTEMS
ANNUNCIATION SYSTEMS
FLAMEPROOF SYSTEMS
PUBLIC ADDRESS INTEGRATED SYSTEM
FIREMAN TALKBACK INTEGRATED SYSTEM
ACCESSORIES & MODULES

Microprocessor based design Fire Alarm Module Connect With Panel:

  • Zone circuit Fault indication for or short circuit on detection loop.
  • Alarm LED.
  • Com Led (Green) If Led Flash Communication ok.
  • Dual Tone Buzzer (Only For Alarm Condition)

Double sided PTH PCB for long life and highest reliability.


Special Features
Downloads
Special Features

Optional:

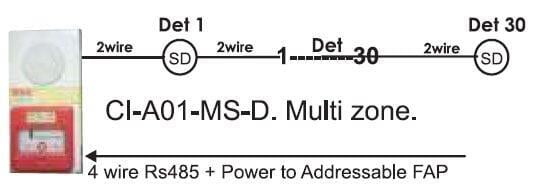

Fire Fault Isolated contacts for interfacing a conventional zone to an addressable monitor module. Also available only as Zone panel for external MCP, Hooters & detectors.


Features:
Is very useful in controlling false alarms from detectors in dirty environment. The Filed version of this module is available foe wall mounting or Din rail mounting. Wall junction boxes can be supplied with or without an MCP+Hooter or Output for Hooter/ Relay. All modules come Standard with a monitored zone input and open collector alarm output.

  • Detectors: Max 30.

  • MCP: Unlimited one provided on panel.

  • Sounder: Built in.
  • Main Power Supply: 24v DC.
  • Fascia: MS powder coated with double action MCP & Piezo Hooter.
  • Indications:Common, Zone flt, & Zone Alarm.
  • Cabinet: MS1.2mmsheet steel construction.
  • Cable Entry: Bottom. 14mm knockout.
  • Color: White.
  • Housing Construction: Wall Mounting & Flush Mounting.
