Probe Type Heat Sensor
Model No.: PPS-75FJB/PPS-75
Probe Type Heat Sensor is designed to operate at a fixed temperature. This detector finds a suitable application at various place like kitchen Hoods, Paint Booths, Ducts, Generator Sets, CNC Machines etc. This heat Sensor is having a Flame proof Thermocouple Head.
Special Features
Specification
Downloads
Special Features
- High Sensitivity.
- Quick Reaction
- Excellent Reliability
- Long Life
- High Temperature of 75 Degree Celsius
Specification
| Cable Entry | : | Two Holes Aside |
| Resistance | : | 3 K Ohm |
| Storage Temperature | : | 120 Deg. Celsius |
| Maximum Latching Current | : | .1 mA |
| Sensitivity | : | 70% / Deg. Celsius |
| Color | : | Grey |
Specifications:

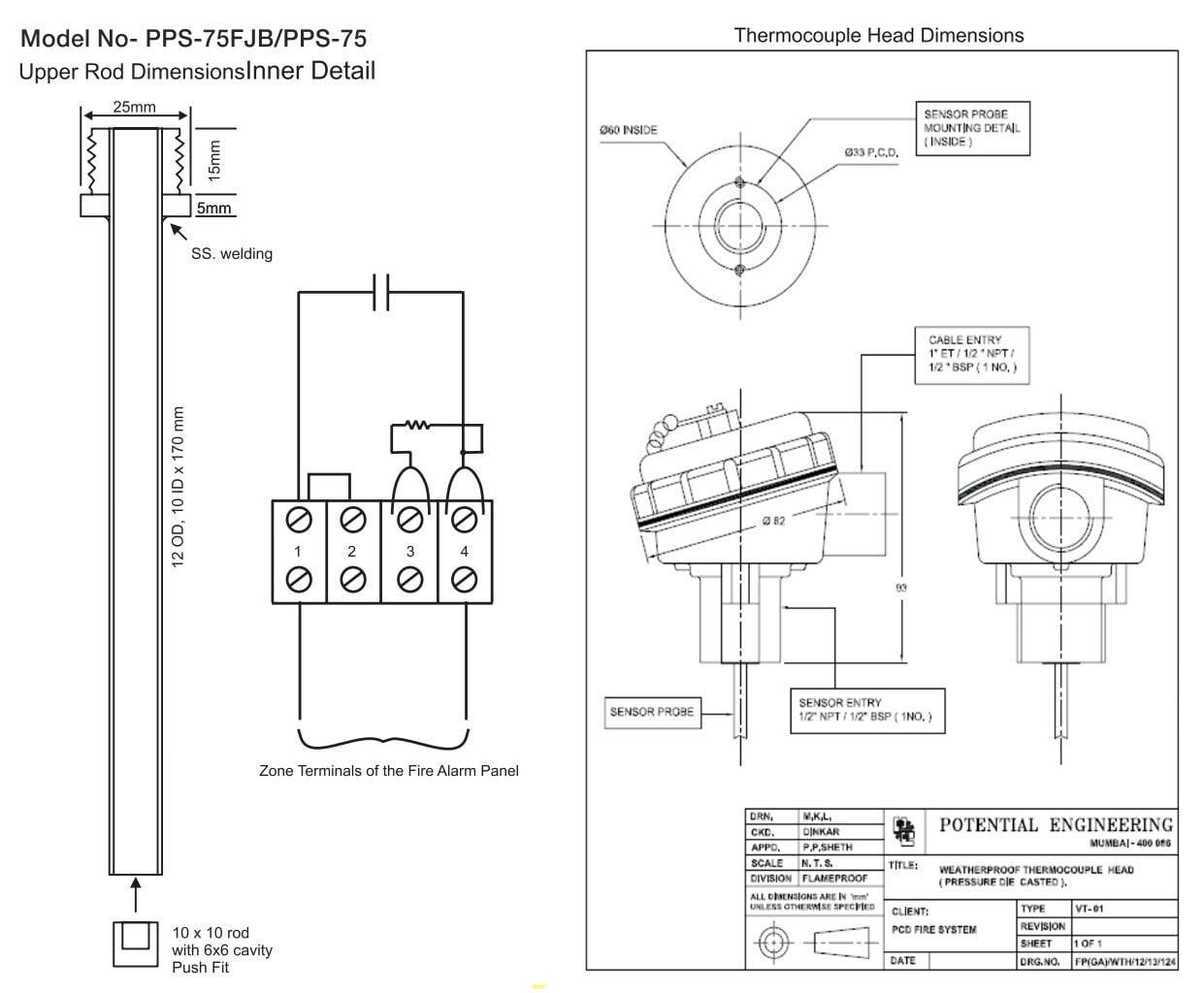

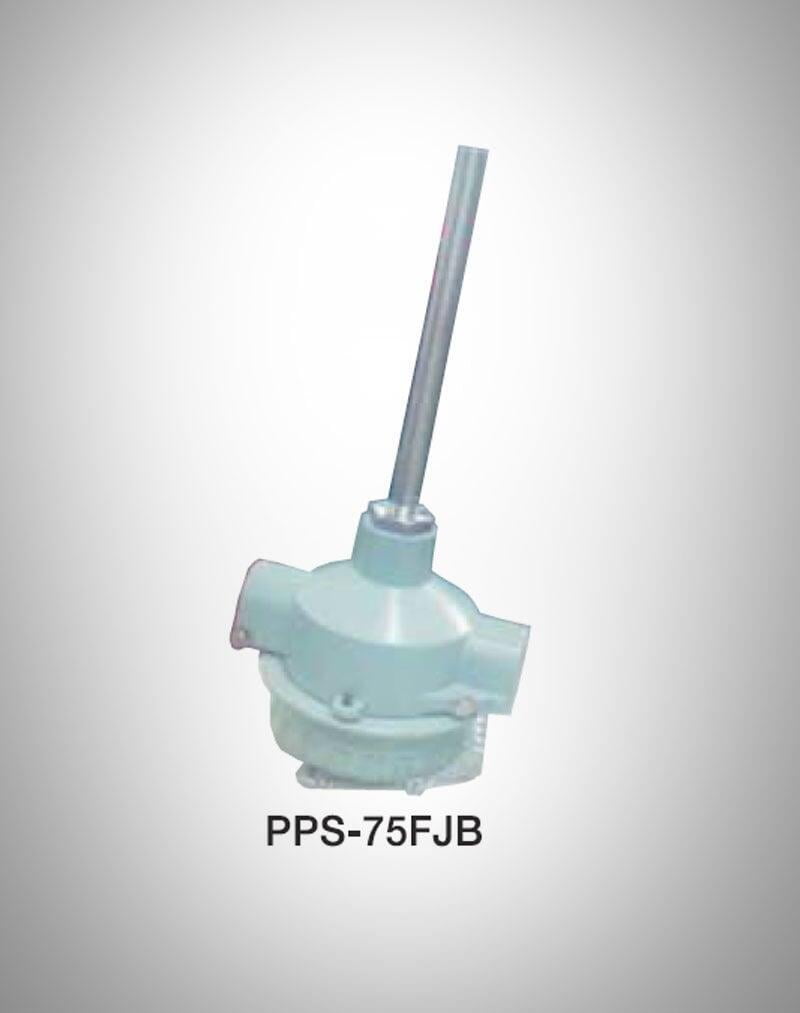

Model No.: PPS-75FJB- With Flameproof Thermocouple Head at Bottom
PPS-75- ONLY UPPER ROD
