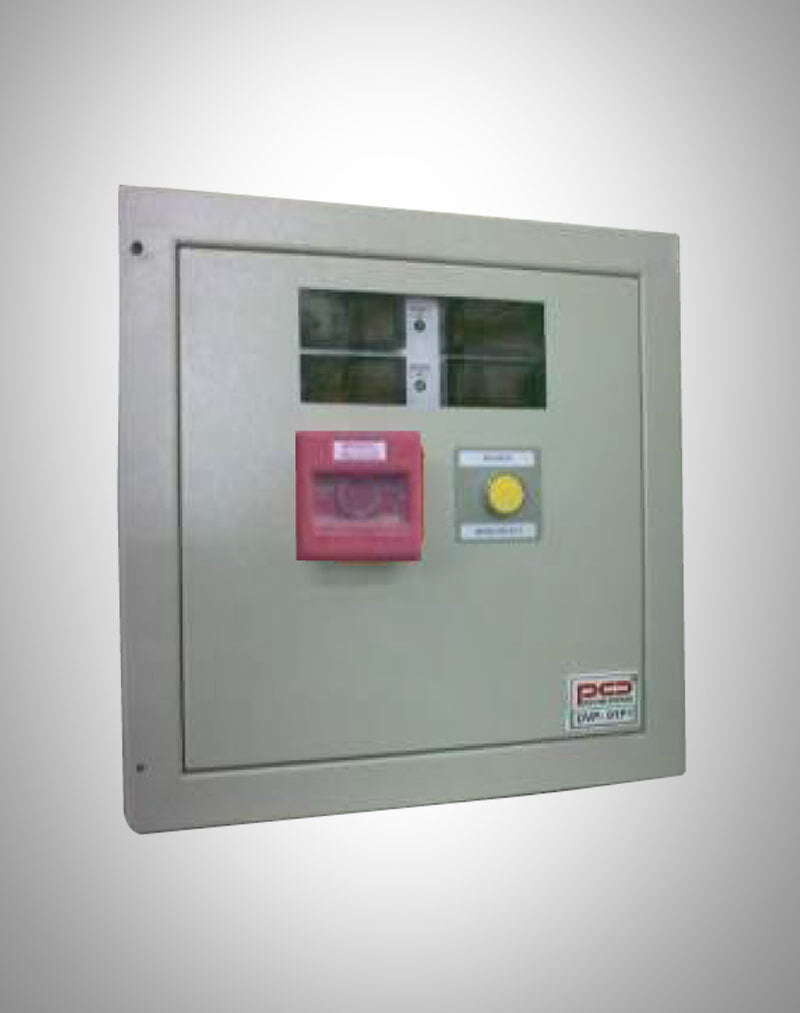

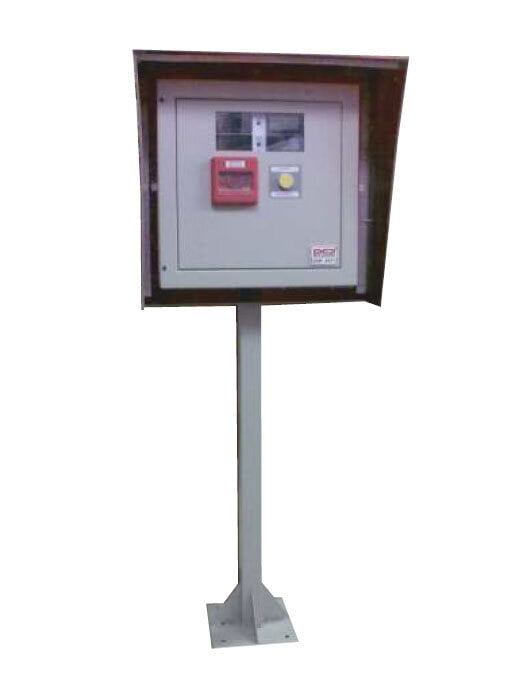

DV Panel Standard:

(Standard Deluge Value Panel)

Model: DVP-01P1

Manual Call Point in ABS, for indoors also available in other colors as per international standards depending on requirements.

AIIMCPS are made with the highest Quality components, PCD are Glass Epoxy.

FIRE ALARM SYSTEMS

GAS RELEASE SYSTEMS

DELUGE VALVE SYSTEMS

DV Panel Standard

WATER LEAK DETECTION SYSTEMS

LINEAR HEAT SENSING SYSTEMS

Alarm Point Locator

ANNUNCIATION SYSTEMS

Sprinkler Annunciation

FLAMEPROOF SYSTEMS

PUBLIC ADDRESS INTEGRATED SYSTEM

PCD 2020 Master Controller

FIREMAN TALKBACK INTEGRATED SYSTEM

ACCESSORIES & MODULES

Special Features

Downloads

Special Features

Technical Data:

This DV panel will be the electrical interface between the DV and the Site Fire alarm system. The Panel shall monitor itself and all connected input circuits including the supply for fault and shall signal the FAS system accordingly.

In case the Deluge valve Opens (Automatically or Manually) this will cause the pressure switch mounted on the outlet to sense the change in pressure and change state. This in turn will switch on the DV Open indication. Along with this the panel will switch on its external alarm signal to annunciate the alarm condition on the main FAP or repeater panel.

Manal Operation:

A push button on the DV panel will enable the operator to open the DV Manually. When this button is operated the "Manual" indication will come on and the Solenoid mounted on the DV will be switched on. The Audio Visual alarm will also sound.

Remote Operation:

As above in case the DV need's to be opened remotely, A push button or relay contact can be used to signal the "MAIN FAP" indication along with this the Solenoid mounted on the DV will be switched on. The Audio Visual alarm will also sound.

Silence:

The Audio Alarm can be silenced by operating the silence Button on the DV Panel. When the Air Pressure is restored and the DV closes the Panel will automatically revert to its standby state.

Fault Monitoring:

All Wires connected to inputs shall be monitored for Cable open, Short and earth fault. The Battery shall be monitored for Low or disconnected status if installed. In case of complete failure also the NC Fault contact shall change to NO to indicate to the Main FAP or repeater panel a fault.
