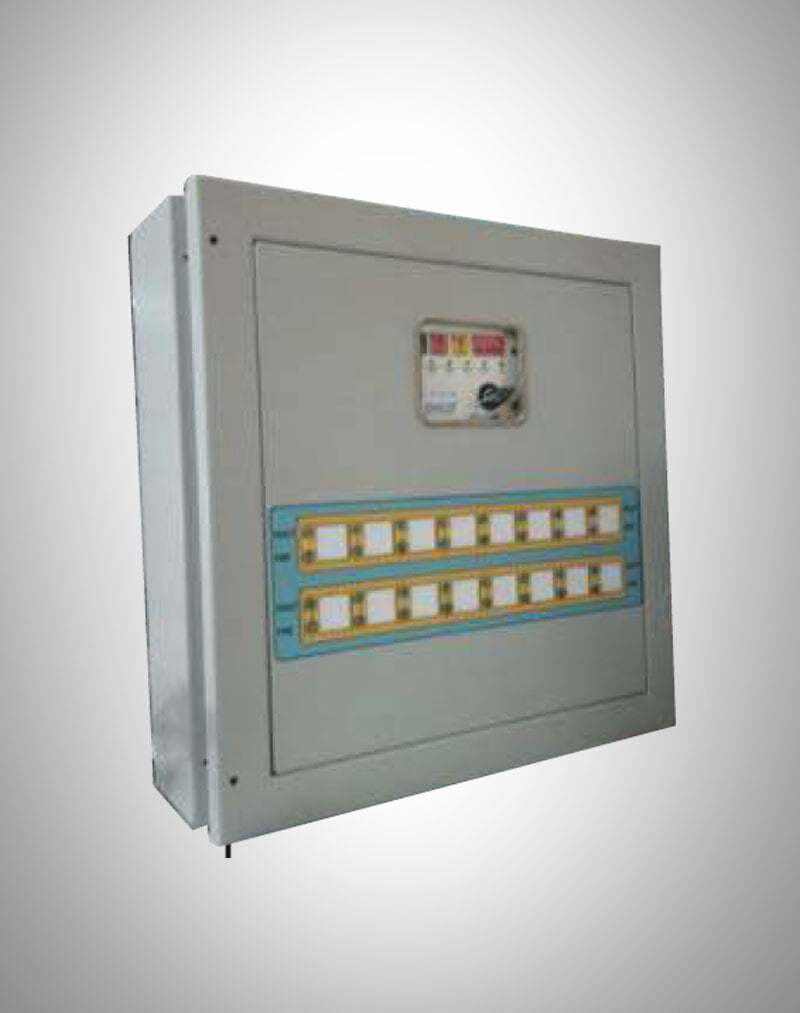

Conventional Multi Zone Panel:
(8-16-32 Zone Fire Alarm Panel)

Model No.: CD 32-LC

Introduction:
These are micro controller based master control and display panels. Their Function is to communicate with Addressable Input and Output Modules connected to it via a 2 wire Rs485 Bus.

The CD-32 communicates with max32 zone Modules. The Series of fire alarm panels make optimum use of the addressable features to reduce cable cost. This panel is available with LED Fire & Fault Annunciators for 16 or 32 Zones.
FIRE ALARM SYSTEMS
GAS RELEASE SYSTEMS
DELUGE VALVE SYSTEMS
WATER LEAK DETECTION SYSTEMS
LINEAR HEAT SENSING SYSTEMS
ANNUNCIATION SYSTEMS
FLAMEPROOF SYSTEMS
PUBLIC ADDRESS INTEGRATED SYSTEM
FIREMAN TALKBACK INTEGRATED SYSTEM
ACCESSORIES & MODULES
Special Features
Downloads
Special Features

Main Feature:

  • The Main Panel has all the necessary indications required to identify source of the fire and take action.
  • It also provides accurate monitoring of all modules connected to it.
  • It Consists of a cabinets with a power supply, battery charger and space for Batteries.

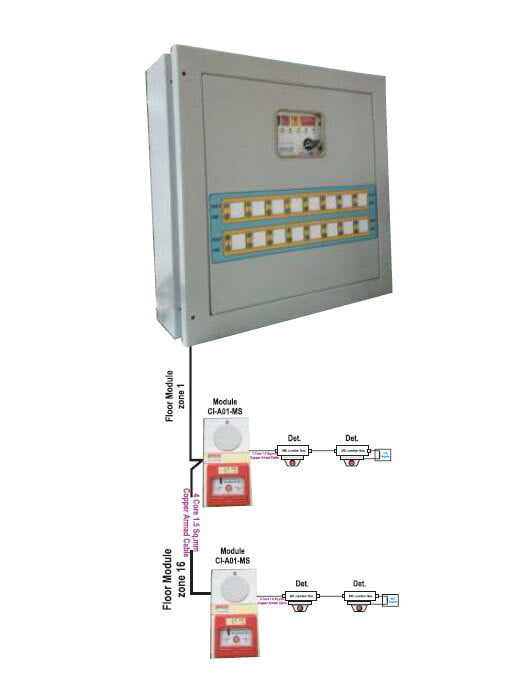

Loop Wiring:

The Panel is connected to Zone modules with a 4 wire loop this consist of 2 wires for data communication and 2 wires for 24v CD supply.


Indication Common:
  • Alarm Dual Red LEDs.
  • Supply Fault LED.
  • Hooter Fault LED.
  • Common Fault LED.
  • Zone circuit Fault LED.
  • Test or Isolate LED.

Panel Size:
400MMx400MMx120MM

CD 32 Panel Model No.:
  • CD 32 LC 16Z
  • CD 32 LC 24Z
  • CD 32 LC 8Z
  • CD 32 LC 32Z
