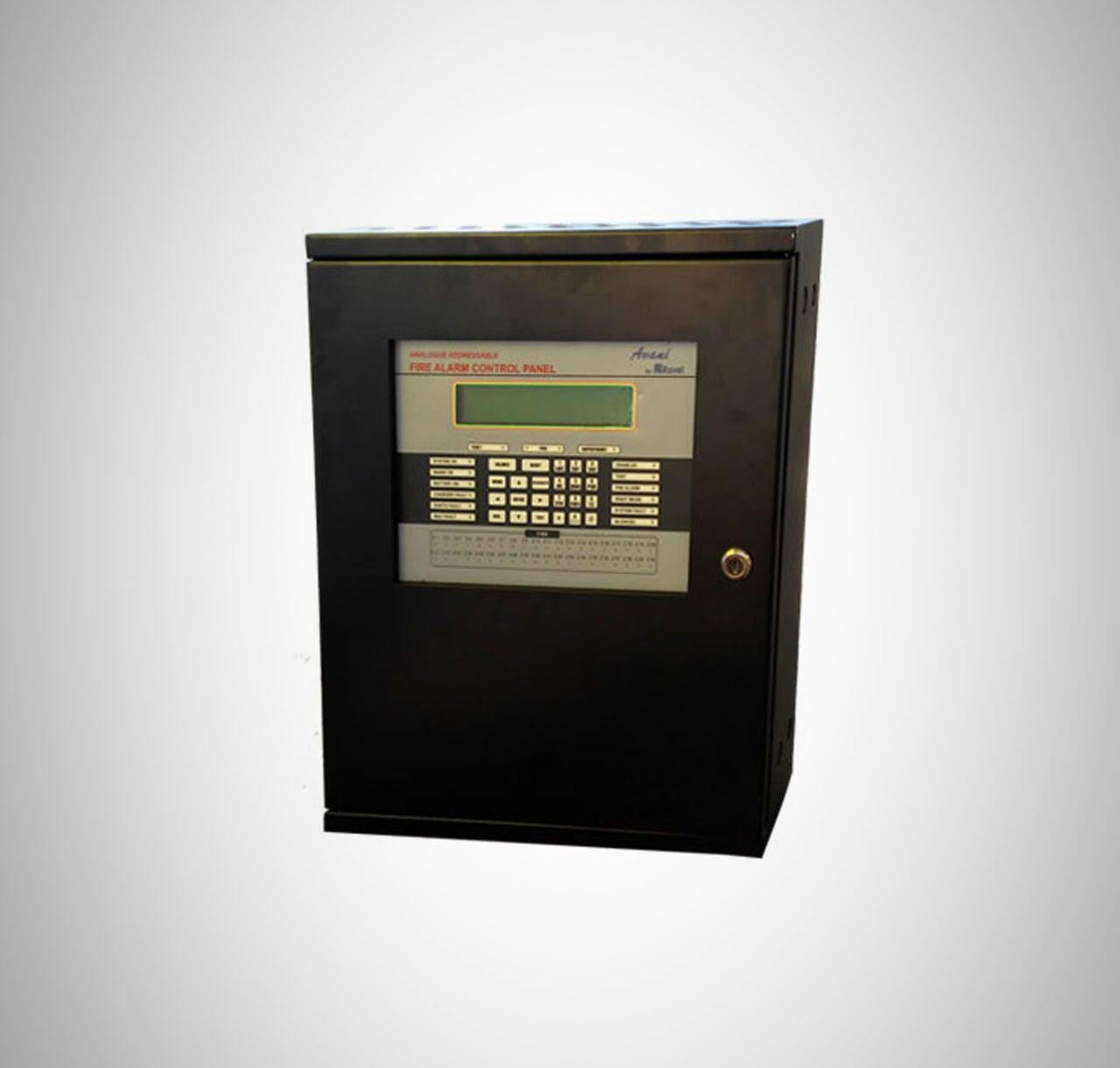

RE-102ET/104ET is a right blend of affordable design and quality with latest technology for fire alarm control panels.


This microprocessor based conventional Fire Alarm Control Panel, is designed to be used for small size commercial buildings and small scale industries.

RE-102ET/104ET model is an user friendly 2 & 4 zone standalone control panel, with TCP/IP, USB and RS 485.
FIRE ALARM SYSTEMS

Gas Release Systems

DELUGE VALVE SYSTEMS

WATER LEAK DETECTION SYSTEMS

LINEAR HEAT SENSING SYSTEMS

ANNUNCIATION SYSTEMS

FLAMEPROOF SYSTEMS

PUBLIC ADDRESS INTEGRATED SYSTEM

FIREMAN TALKBACK INTEGRATED SYSTEM

ACCESSORIES & MODULES

Special Features
Tech Specifications
Downloads
Certificates
Tools
Special Features

  • Indian Manufacturer – International standard.
  • UL Certified (9th Edition)
  • Touch Keypad for user friendly operation.
  • Inbuilt USB.
  • Universal Switched Mode Power Supply.
  • Modular Construction, Serviceability.
  • Networkable.
  • Auto Resettable Fuse.
  • Surge Protection.
  • Battery polarity protection.
  • 32 Bit processor.
  • Unique protocol feature for fast alarm response.
  • Inbuilt conventional circuit.
  • Auto learning facility.
  • 1016 Devices of any combination per panel.
  • Multi protocol.
  • Peer to Peer Networking.
  • Redundancy : If the main CPU fails, it will raise an alarm like conventional panel.
  • User friendly circuit.
  • Device / Detector wise configuration facility.
  • 2000 Event Storage with Real Time Clock.
  • Upto 192 grouping facility.
  • Pre Alarm Action.
  • All field wiring are power limited and supervised.
  • Programmable detector sensitivity.
  • Device type verification.
  • Earth fault annunciation facility at 0 ohms.
  • Double Address Sensing.
  • Loop wise device test.
  • 40 X 4 Characters LCD display
  • Maximum 4 numbers of loop card with Class A, Style 5,6 or 7 and Class B Style 4 wiring
  • Maximum 254 devices (any combination) per loop.
  • Day / Night Mode facility.
  • USB 2.0 Interface for PC connectivity (A to B Type).
  • RS 485 Communication facility for Network / Repeater / MODBUS / BACnet.
  • Programmable Auto Silence Facility / AC Loss Delay / Silence Inhibit.
  • Two no's of programmable inputs.
  • Battery low audio, visual warning.
  • Three programmable Form C relay for Fire, Fault and Supervisory.
  • Two no's of Supervise Notification Appliance Circuits.
Tech Specifications

You can edit text on your website by double clicking on a text box on your website. Alternatively, when you select a text box a settings menu will appear. your website by double clicking on a text box on your website. Alternatively, when you select a text box

 Primary Power
120 / 220VAC + 10% -15%, 60 / 50 Hz


 Programmable Relays
Type : Form C
No of Relays : 3
Relay Contact Rating : 2A @ 30 VDC, 0.5A @ 125VAC		 Standby Power
24V D.C (2 No's of 12V, 40 Ah (Max), Built in for 12Ah)
Sealed Lead acid battery

 Signaling Line Circuits
Loop card : 4 Nos. Maximum.
No Devices per loop : 254
Loop resistance : 40Ω (Max.).
Loop capacitance : 0.6 µf (Max.).
Loop Current : 300mA (Max.).



 Charging Circuit Charging Voltage 28 V, ±0.2V Nominal Charging Current 1.2A (Max.).







 Initiating Device Circuits
Class B Style B/C Operation.
No of Conventional Zone : 1
Normal Operating Voltage : 14 – 21 VDC.
Alarm Current : 15 – 30mA.
Short Circuit Current : 45mA Maximum.
Loop resistance : 100Ω Maximum.
End-Of-Line Resistor : 4K7, 1/2 watt
Standby Current : 7mA (2mA for Detectors)
Notification Appliance Circuits
No of circuits : 2
Class B, Style – Y wiring
Operating Nominal Voltage : 24 VDC Nominal
Current for NACs :
NAC – 1 : 0.9A
NAC – 2 : 0.9 A
Line Drop : 2.4V
End-Of-Line Resistor : 4K7, ½ watt
D.C. Output
Supervised 24VDC, 300mA Max. 		 Programmable Input Circuit
Normal Operating Voltage : 4 – 8 VDC.
Short Circuit Current : 3mA Maximum.
Loop resistance : 100Ω Maximum.
End-Of-Line Resistor : 4K7, 1/2watt
Standby Current : 1.25mA





 

Mechanical Specification:

  Dimensions: (400W X 500H X 120D)mm
 Color:  White / Red / Black White / Red / Black
 Construction:  16 Gauge (1.6 mm) CRCA sheet with powder-coated Finish 16 Gauge (1.6 mm) CRCA sheet with powder-coated Finish
 IP Rating:  IP50 IP50
 Cable Entry: 9xø22.25mm Knockout in top of the cabinet
 9xø19mm Knockout in top of the cabinet
 Weight:  13 Kg 13 Kg

Compatible Devices:

MODEL  DESCRIPTION
 RE-317D-SHL Photoelectric & Heat detector
 RE-317D-SL Photoelectric smoke detector
 RE-317D-HL Heat detector
 RE-717MC Control Module
 RE-717MM Monitor Module
 RE-717MR Relay Module
 RE-717MI Isolator Module
 RE-717M Manual Call Point
 RE-AMB Modbus Converter
 RE-517ME Ethernet Module
 RE-717PT Ethernet Module
 RE-517BN BACnet Converter
 Avani - RP Fire Alarm Repeater Panel
 RE-314BI Isolator Base
 RE-515MP-A4 Mimic Display System - 32 LED Panel (Max)
 RE-515MP-A3 Mimic Display System - 64 LED Panel (Max)
 RE-515MP-A2 Mimic Display System - 128 LED Panel (Max)
 RE-515MP-AX Mimic Display System - 512 LED Panel (Max)
 RE-4K7 End Of Line Resistor

Ordering Information:

 MODEL  LOOP
 Avani - W / R / B1,2,3 & 4 Loop

Note : W - White Color | R - Red Color | B - Black Color
